Azure DevOps Release

The Azure DevOps release pipeline consumes the build artefact, pulls DataStar.Tools (and optionally the component templates) from an artefact feed, and runs the deployment against a target database.

Prerequisites​

  • A build pipeline that packages the scripts from a deployment manifest.
  • An artefact feed with DataStar.Tools published to it. See Artifacts.
  • For reversal: the component templates packaged and published to a feed. See Package templates.

Define the pipeline​

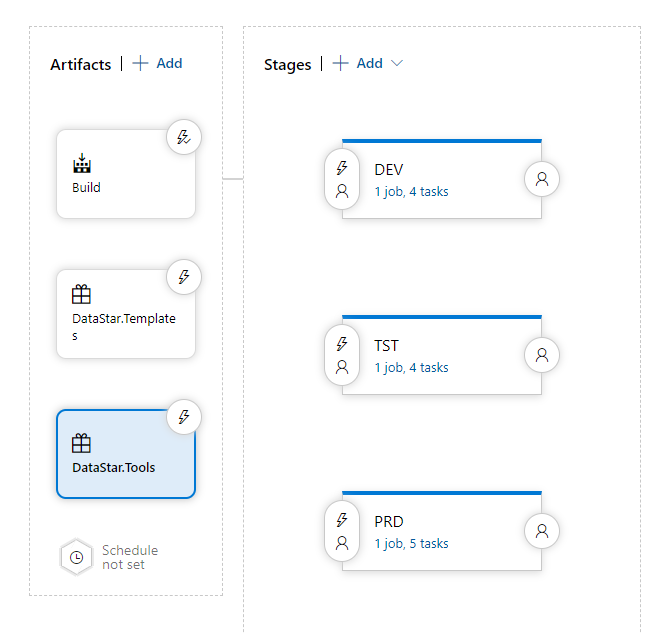

Create a release and add the artefacts it depends on:

  • The build output. Usually configured as the release trigger.
  • The templates package, if reversal is enabled.
  • The DataStar.Tools package, so the CLI is on the agent at deploy time.

Add one or more environments. Configuration details vary by Azure DevOps version; refer to the Microsoft documentation for the exact UI.

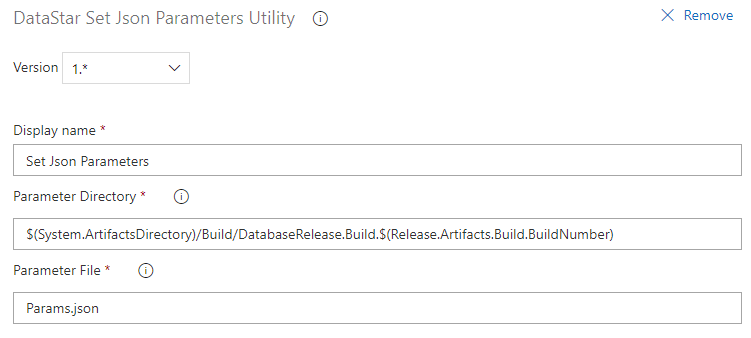

DATASTAR: Set Json Parameters​

Read the metadata file written during the build with the Set Json Parameters task. This sets pipeline variables for WorkItem, Version, and anything else the build recorded.

Execute DataStar.Tools​

Run the deployment with a command-line task. A typical invocation for SQL Server with auditing and reversal enabled:

DataStar.Tools.exe -db "Microsoft" -en "DEV" \
  -cs "User ID=$(DatabaseUser);Password=$(DatabasePassword);Data Source=$(DataSource);Database=$(Database)" \
  -ae -ah "ADS_DEPLOYMENT_HISTORY" -ar "ADS_DEPLOYMENT_REVERSAL" -as "ADS_DEPLOYMENT_SUMMARY" \
  -lk "$(LicenseKey)" -wi "$(WorkItem)" -vn "$(Version)" \
  -re -wd "$(System.ArtifactsDirectory)/Build/$(DeploymentPackageName)$(Release.Artifacts.Build.BuildNumber)" \
  -td "$(TemplateDirectory)" -lf "output.txt"

Each flag is documented in the DataStar.Tools reference.

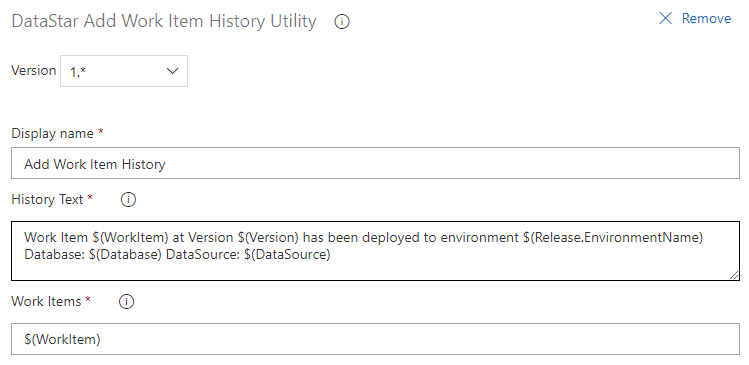

DATASTAR: Add Work Item History (optional)​

Record deployment details against the work item with the Add Work Item History task.

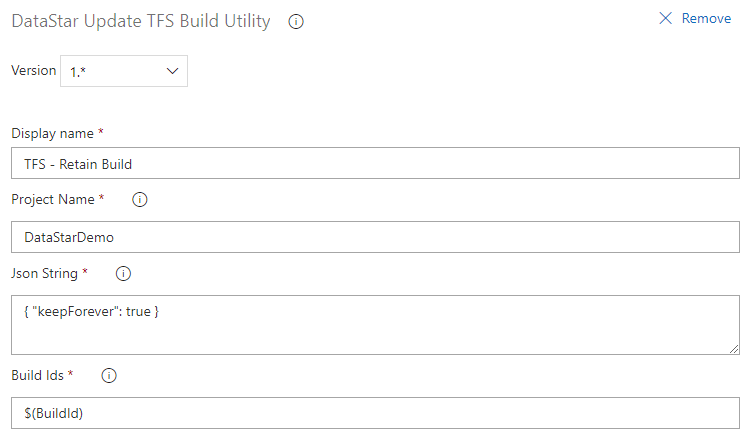

DATASTAR: Update Build (optional)​

Retain the build indefinitely for environments that need it, using the Update Build task.

DATASTAR: Tag Build (optional)​

Tag the build with the environment it was deployed to, using the Tag Build task.
